Accessory Dwelling Unit 01

SK & MB

Gross Building Area: 55 sq. m. (590 sq. ft)

1 1

Single-storey Accessory Dwelling Unit, accessible-ready.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

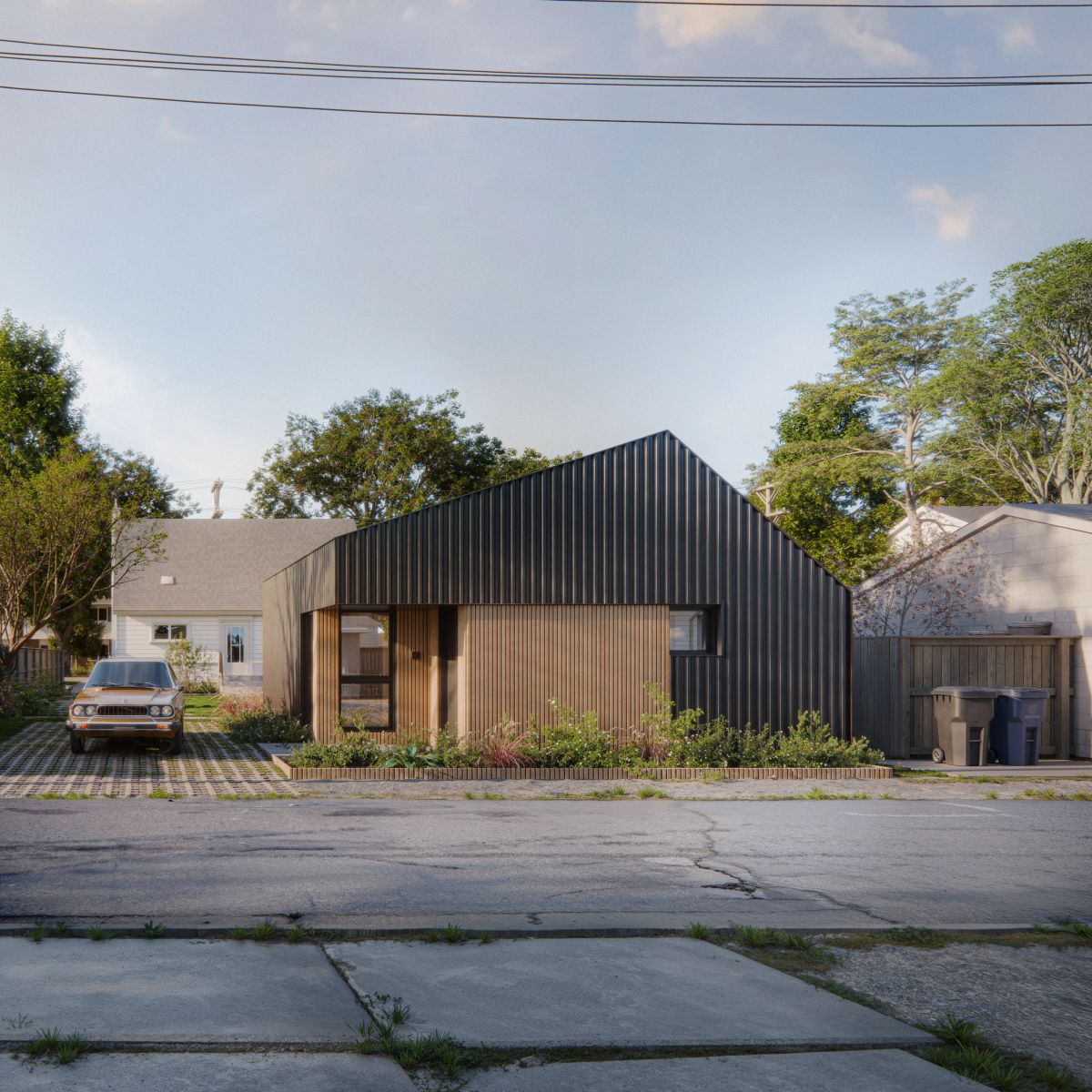

A realistic 3D rendering of a single-storey home with a sloped roof and a sleek, minimalist design. The exterior features a contrast of dark metal cladding and warm wood paneling. The house is set in a residential neighbourhood, surrounded by lush greenery and low-maintenance landscaping.

A 3D line rendering of ADU 01, approximately 590.4 square feet. The rendering showcases the unit’s integration within a residential neighbourhood, showcasing its single storey layout.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
