Rowhouse 02

QC

Gross Building Area: 383 sq. m. (4124 sq. ft)

4 2 Per unit

Rowhouse that can fit in multiple configurations or lot sizes.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

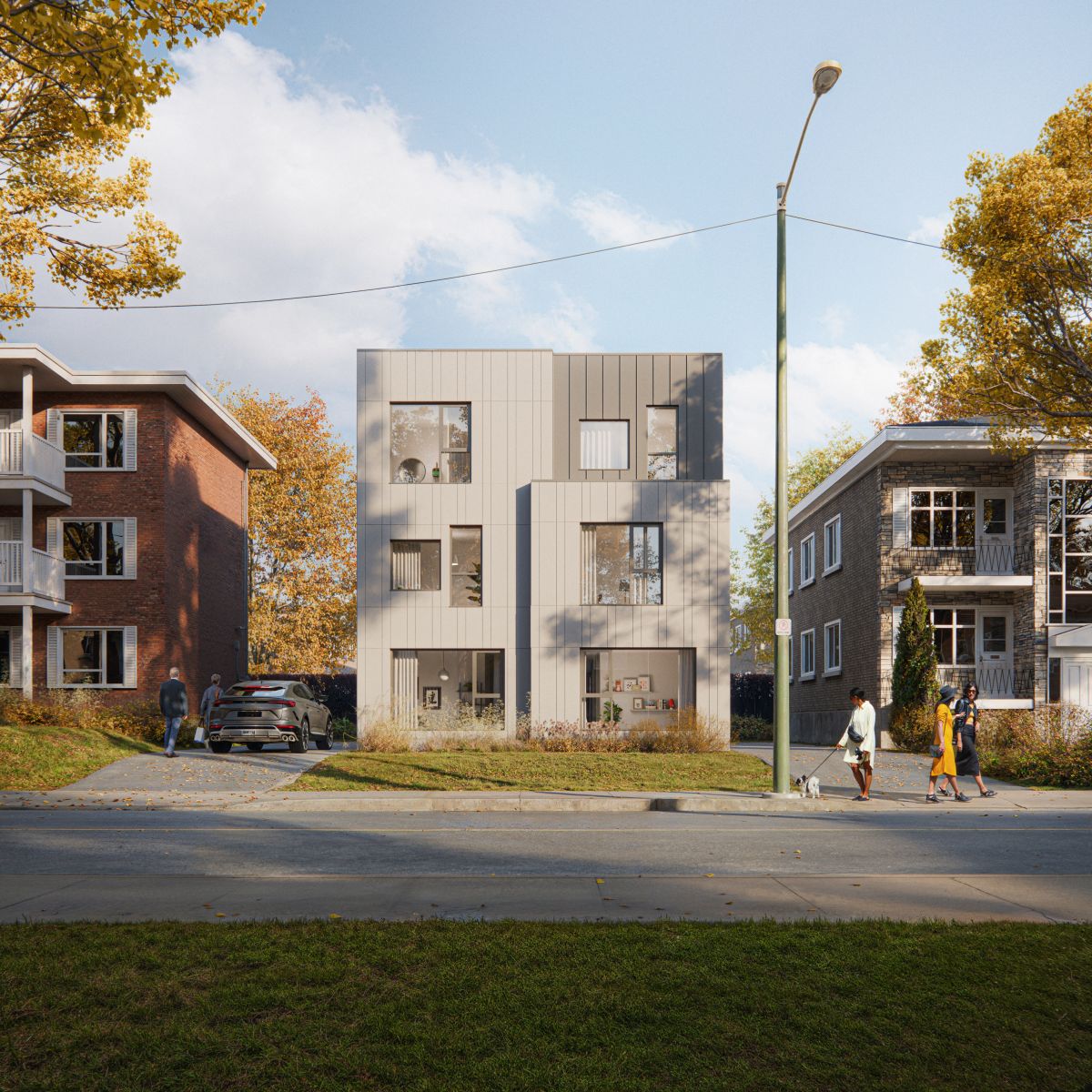

A 3D rendering of a modern three storey home with a sleek light grey facade, blending into a neighbourhood with trees everywhere.

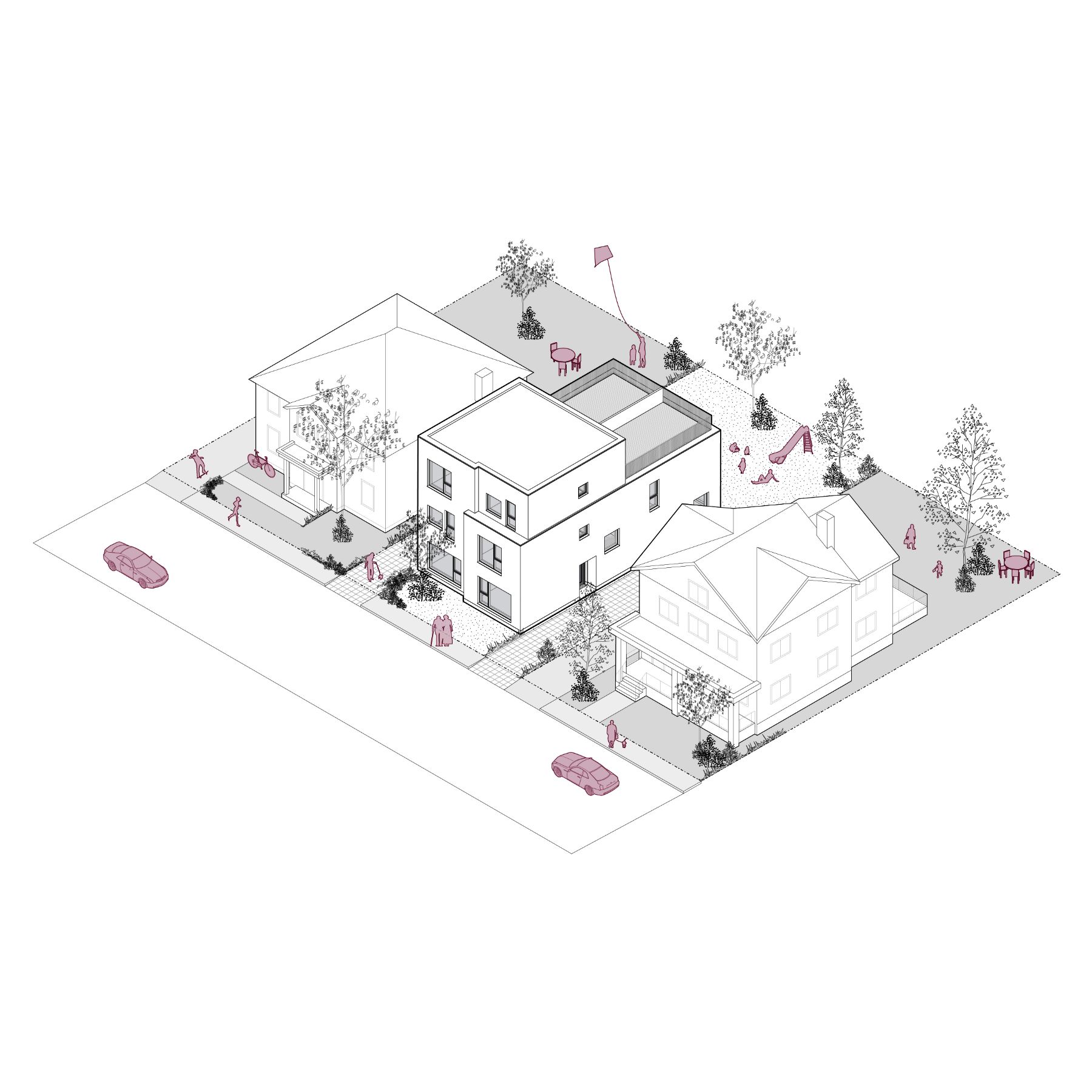

A 3D line rendering of a three-storey duplex, covering approximately 154.3 sq. m (1,661 sq. ft.). The image depicts the building within a residential setting, surrounded by sidewalks, trees, and parked cars.

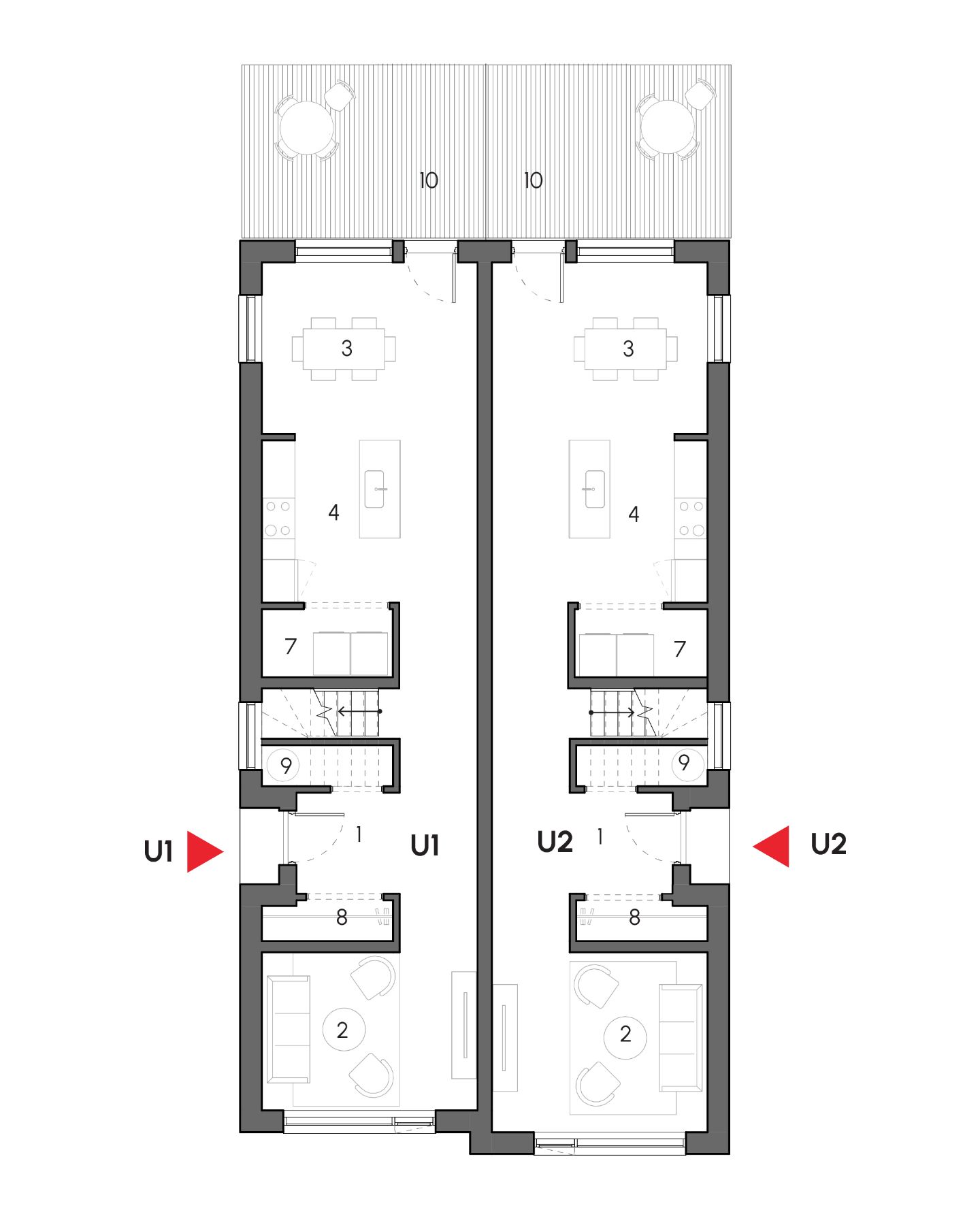

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. N/A
