Stacked Townhouse 02

ON

Gross Building Area: 237 sq. m. (2549 sq. ft)

1–4 1-2 Per unit

Stacked townhouse that can be repeated side-by-side to fit on a variety of property sizes or built as a stand alone on narrow lots. Includes an accessible-ready unit.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

Technical package (All Files)
All of the details to build the design.

Let us keep you up to date

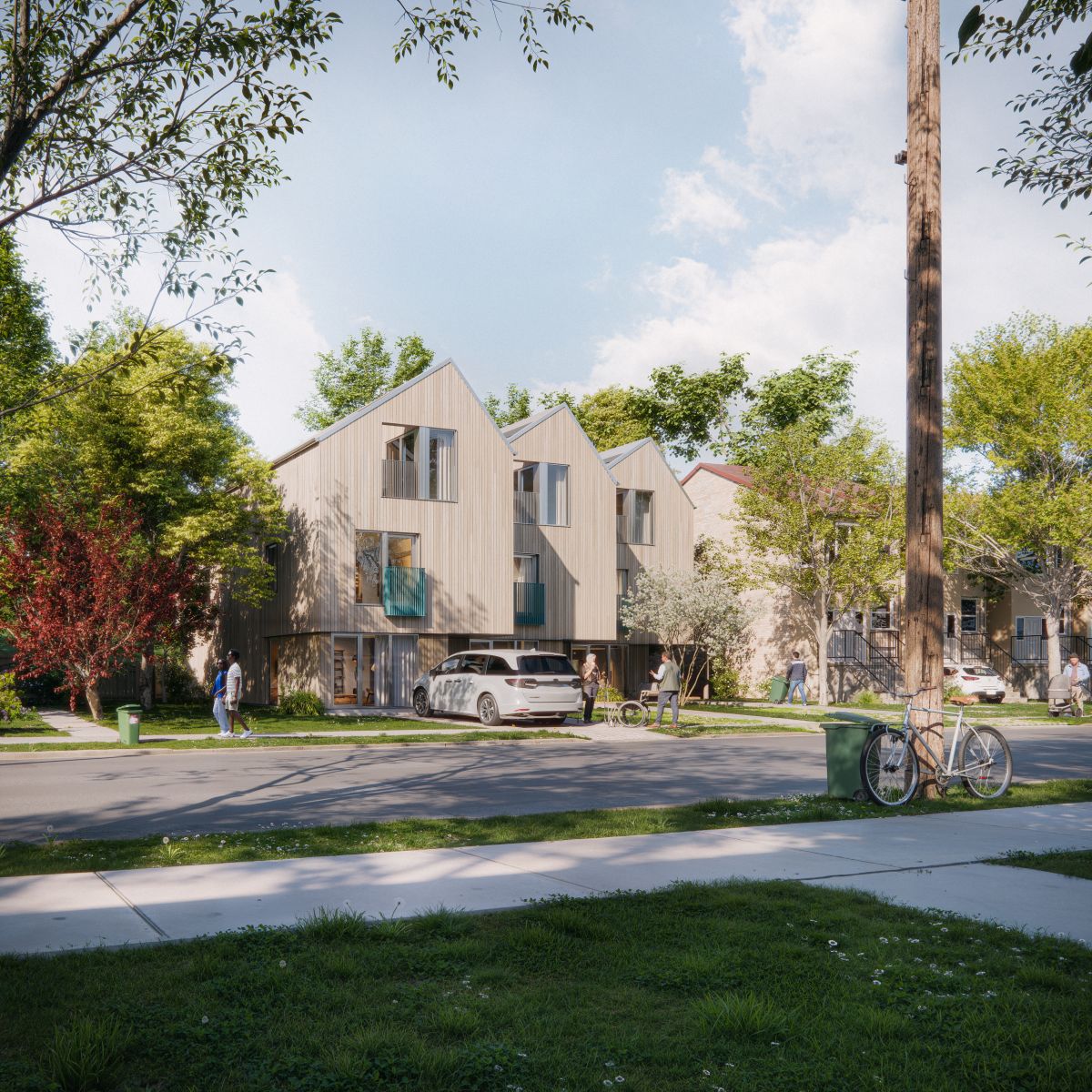

A 3D rendering of townhomes with a light wood exterior, pitched roofs, and large windows.

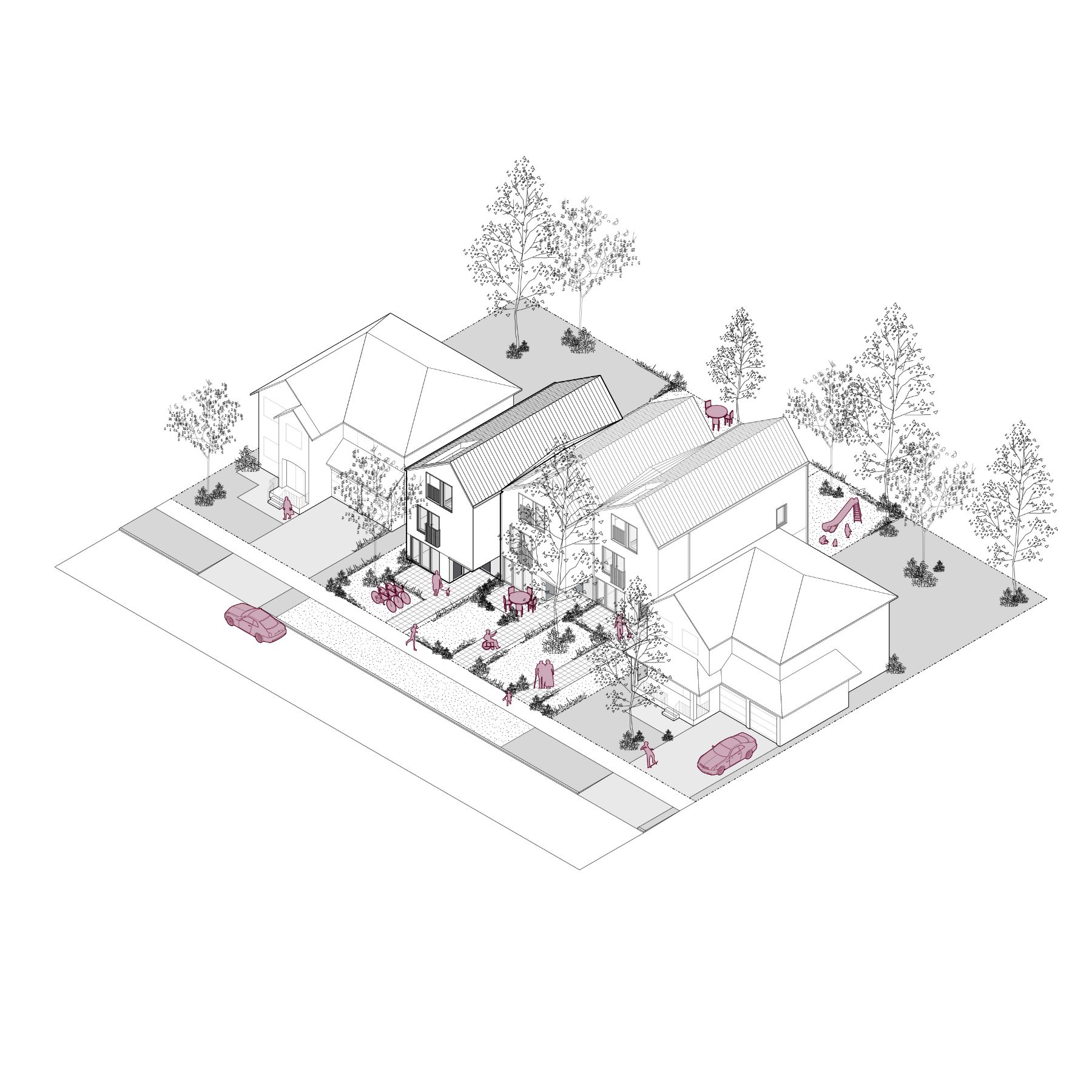

A 3D line rendering of a stacked townhouse, covering approximately 84.0 sq. m (904 sq. ft.). The image shows the three storey building within a suburban neighbourhood.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. Office
