Accessory Dwelling Unit 02

ON

Gross Building Area: 95 sq. m. (1017 sq. ft)

3 1

2-storey Accessory Dwelling Unit with three bedrooms and a carport.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

A 3D rendering of a ADU with a sleek, light wood exterior, tucked behind two brick houses.

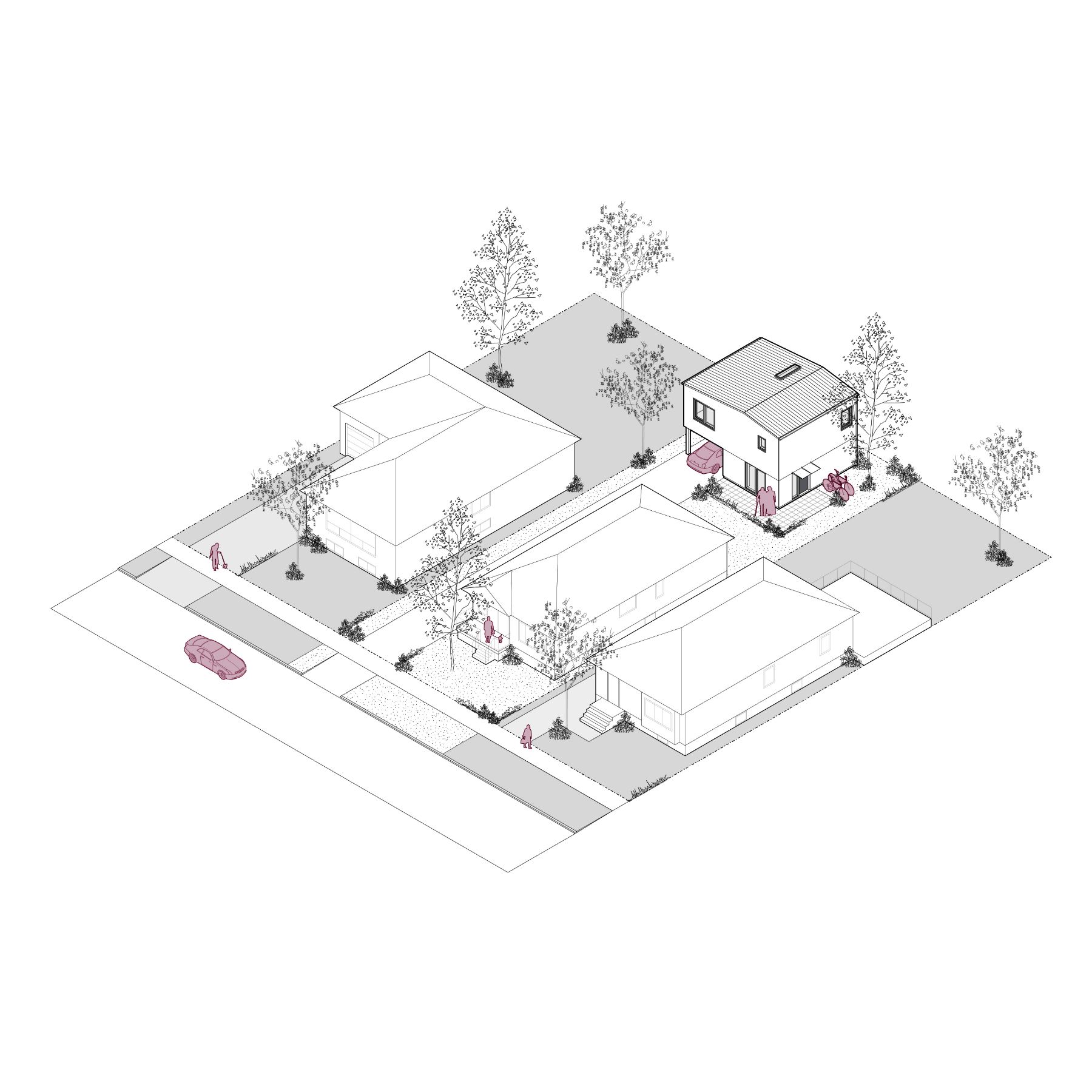

A 3D line rendering of the unit ADU 02, which spans approximately 700 square feet. It demonstrates the unit's placement in a neighbourhood,showing its compact yet spacious design. The model shows how the unit can be positioned to maximize privacy and natural light.

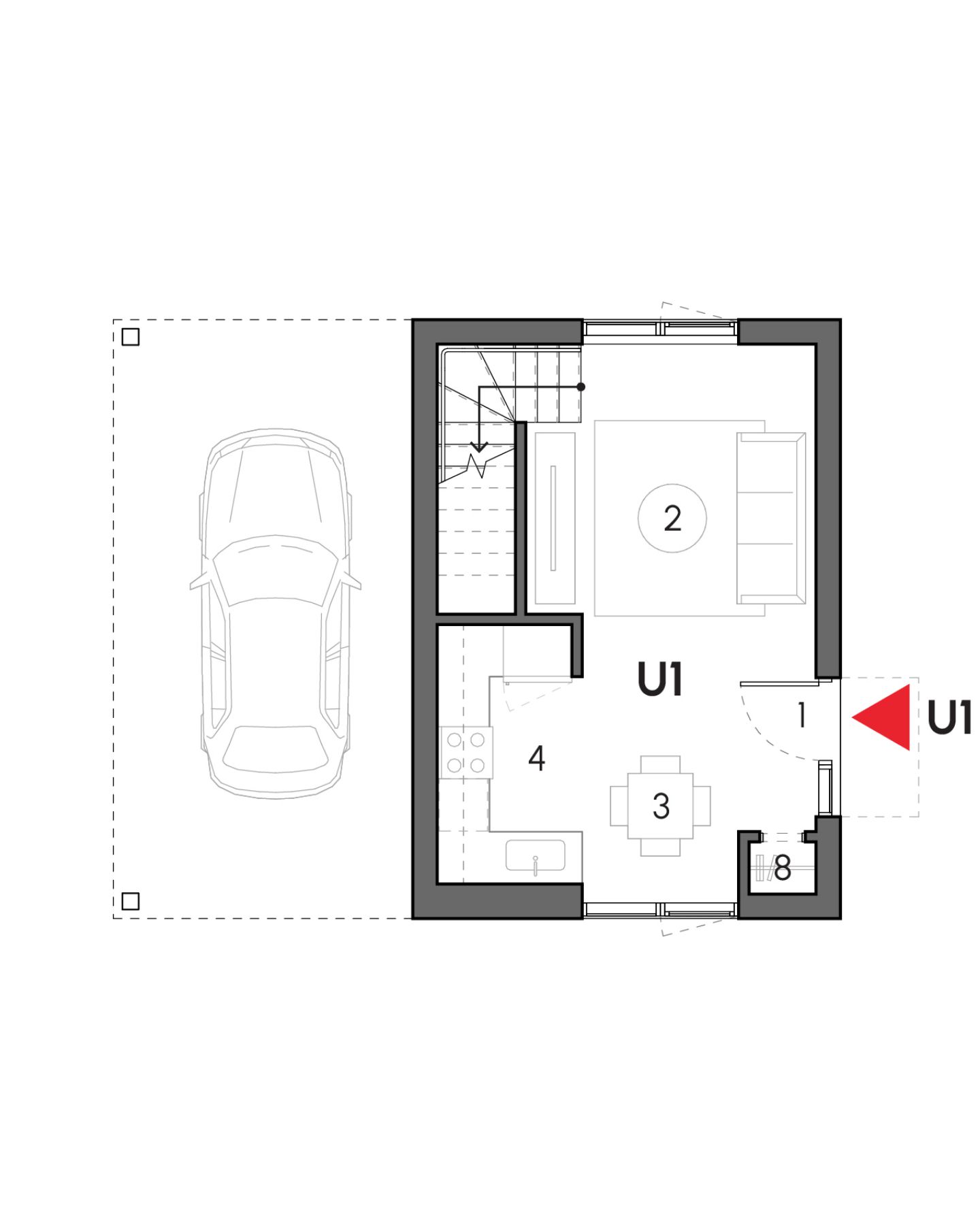

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
