Accessory Dwelling Unit - Municipal with Garage

YT, NWT, NU

Gross Building Area: 120.6 sq. m. (1298 sq. ft)

1 1

2-storey Accessory Dwelling Unit with a double garage designed for municipal services.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

Technical package (All Files)
All of the details to build the design.

Let us keep you up to date

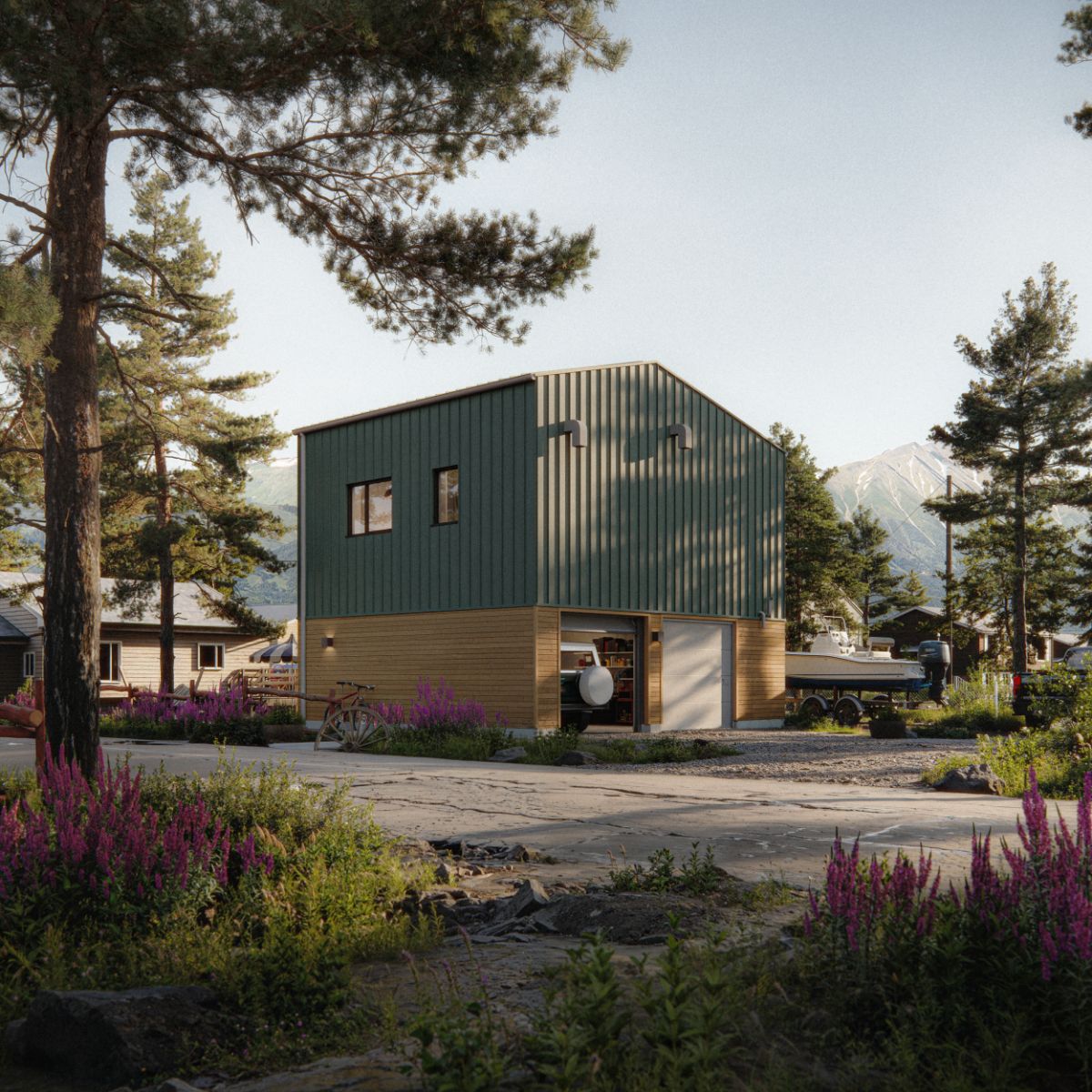

A 3D rendering of a two‑storey ADU with a green metal siding on the upper level and wooden siding on the lower level. The ADU is situated among tall pine trees and purple flowering plants. The lower level has a partially open garage door revealing tools and equipment inside. Snow‑capped mountains and neighboring houses are visible in the background under a clear sky.

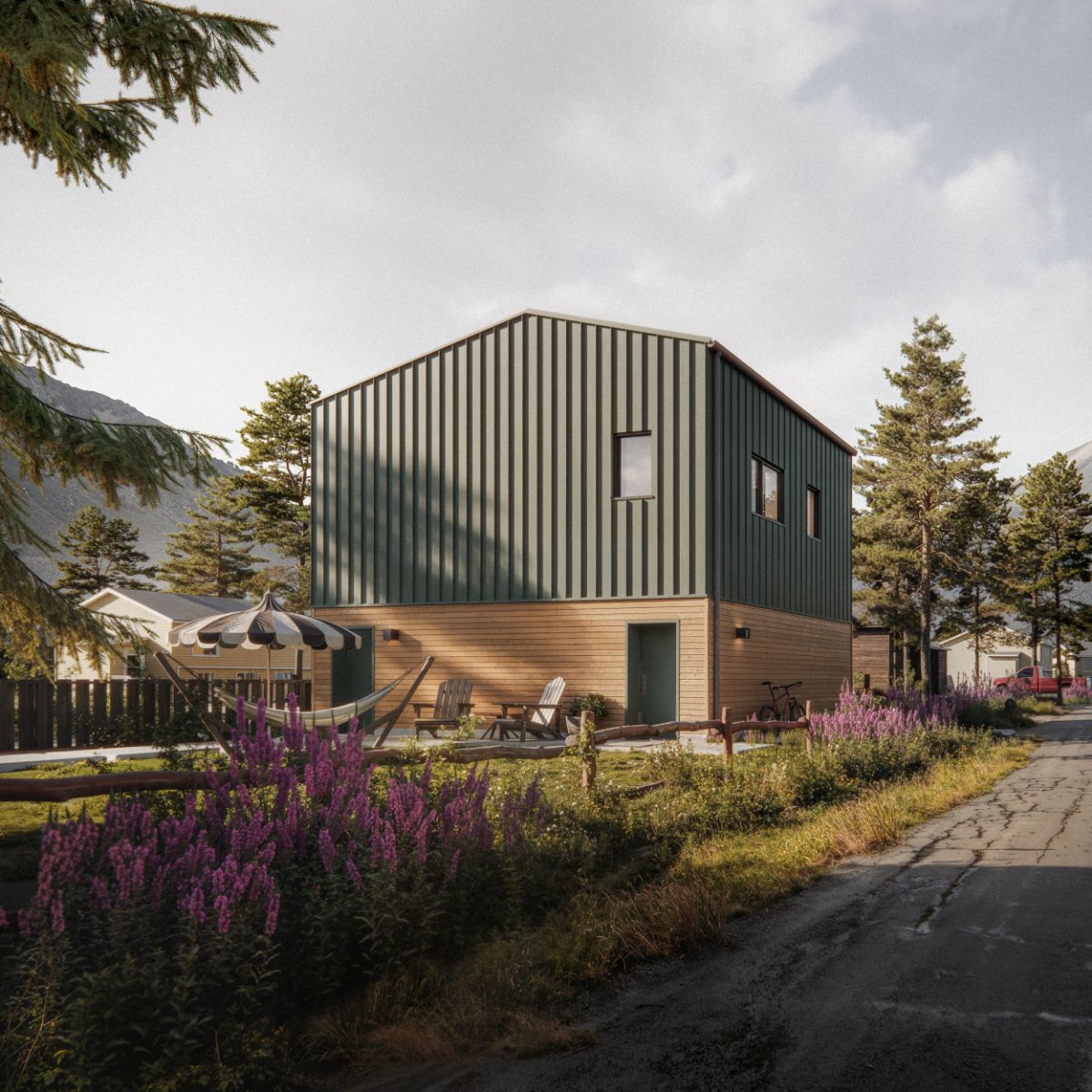

A 3D rendering of a two‑storey ADU with green metal siding on the upper level and wooden siding on the lower level. A small patio with wooden chairs, a hammock, and a striped umbrella is visible in front of the structure. Neighboring houses, tall trees, and distant mountains appear in the background under a partly cloudy sky.

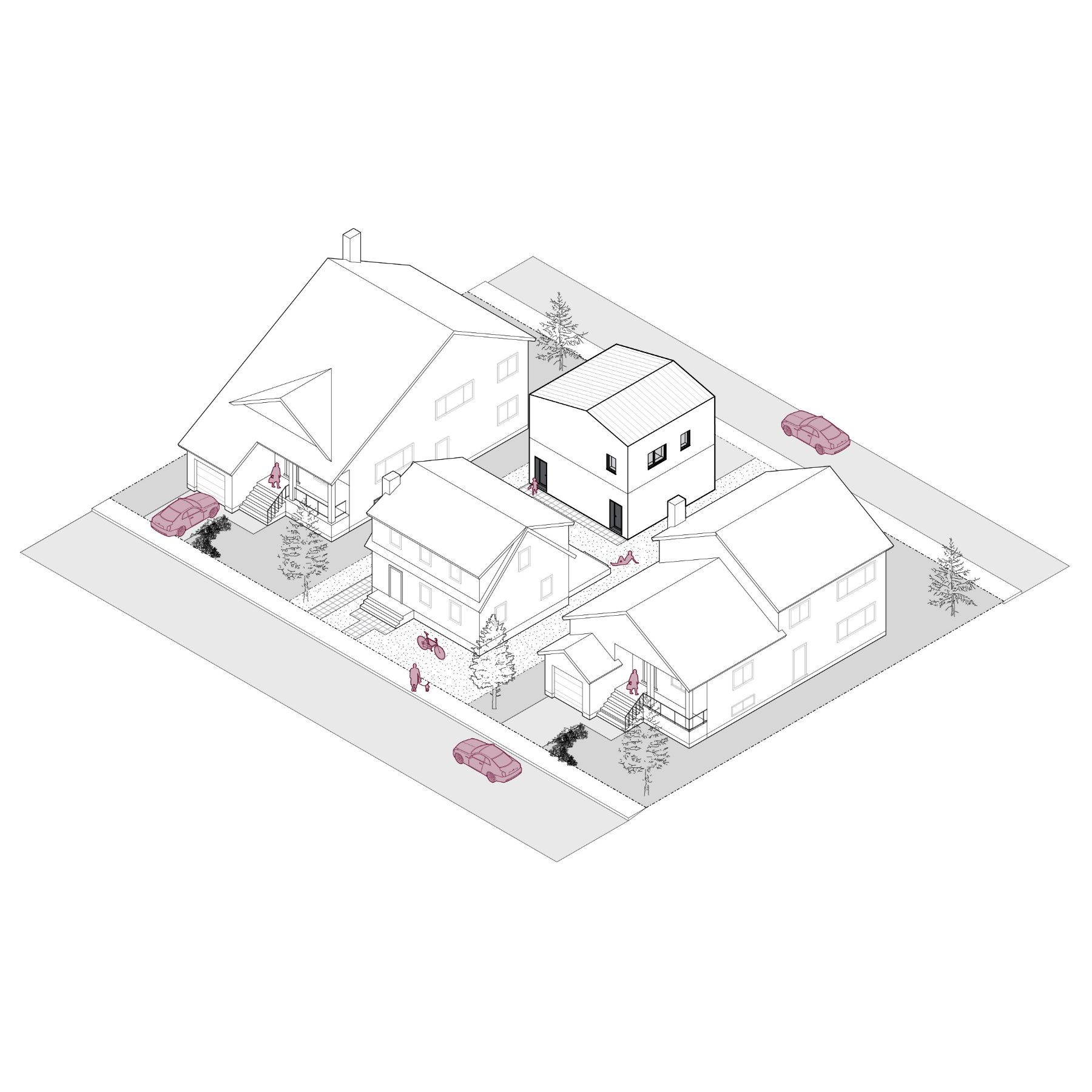

A 3D line rendering of an ADU, which is two-storeys with a garage on the ground floor and a one-bedroom unit on the second floor. The drawing shows the ADU sharing a lot with a single family home. It is also situated between two single family homes on either side, showcasing the seamless integration into a typical residential neighbourhood.

Floor Plans

Legend :

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Garage
11. N/A
