Fourplex 02

BC

Gross Building Area: 556 sq. m. (5985 sq. ft)

3 2.5

4-unit home designed to fit in a variety of neighbourhood contexts.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

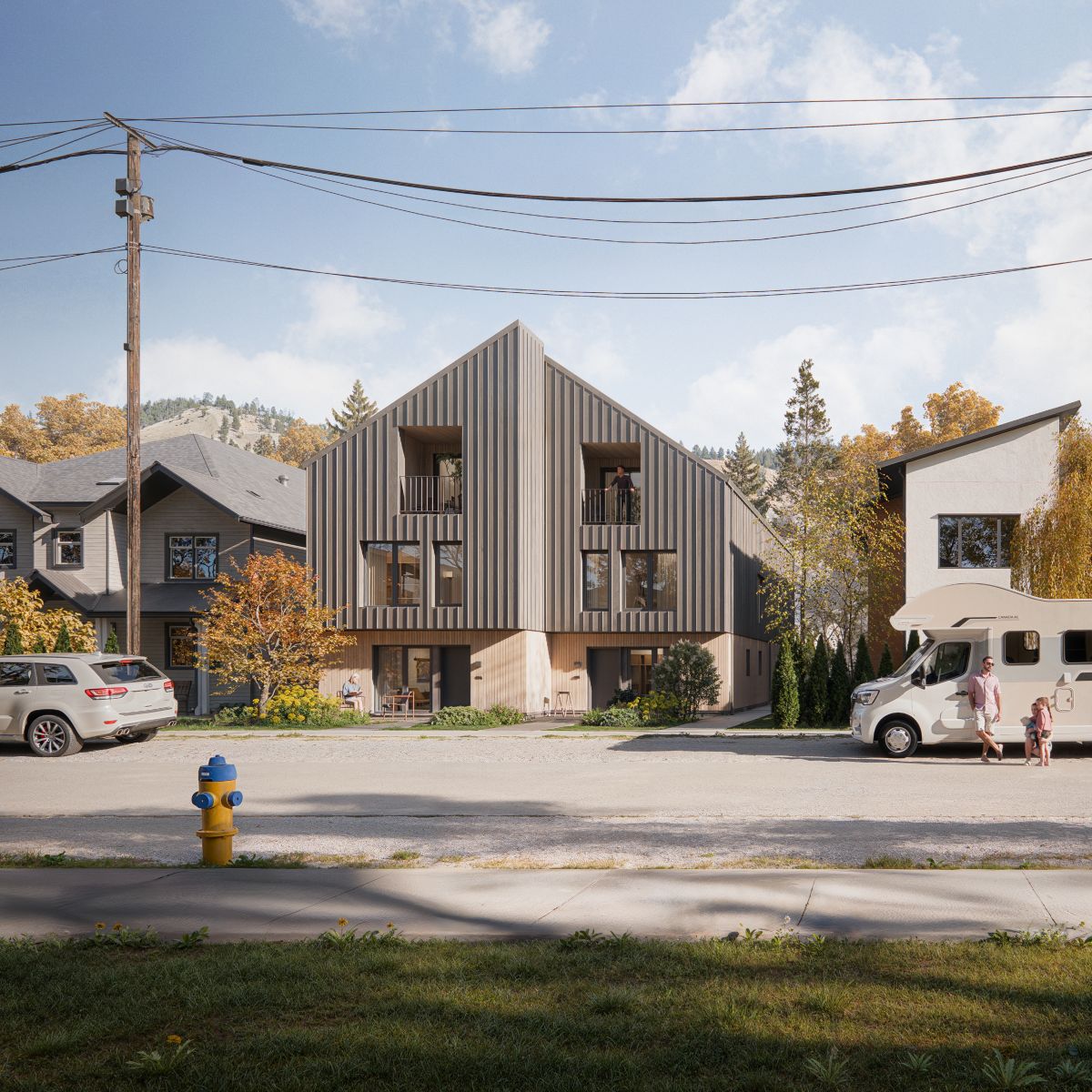

A realistic 3D rendering of a three-storey fourplex building, showcasing a sleek architectural design with a combination of wood and metal finishes. The building is located in a neighbourhood.

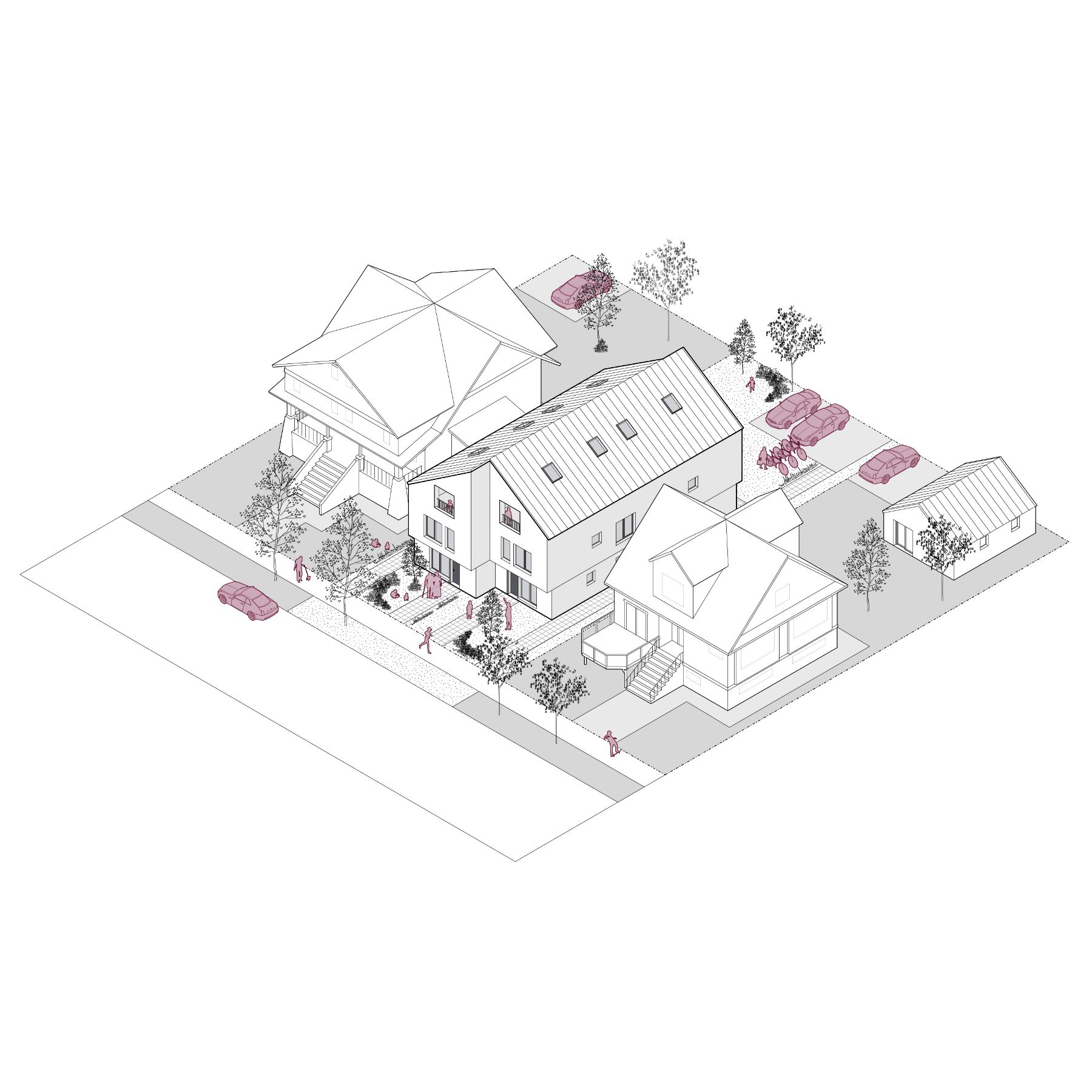

A 3D line rendering of Fourplex 02, spanning approximately 2,800 square feet in total, with each unit covering about 700 square feet. The model illustrates the building in an urban setting, highlighting its design and shared outdoor spaces.

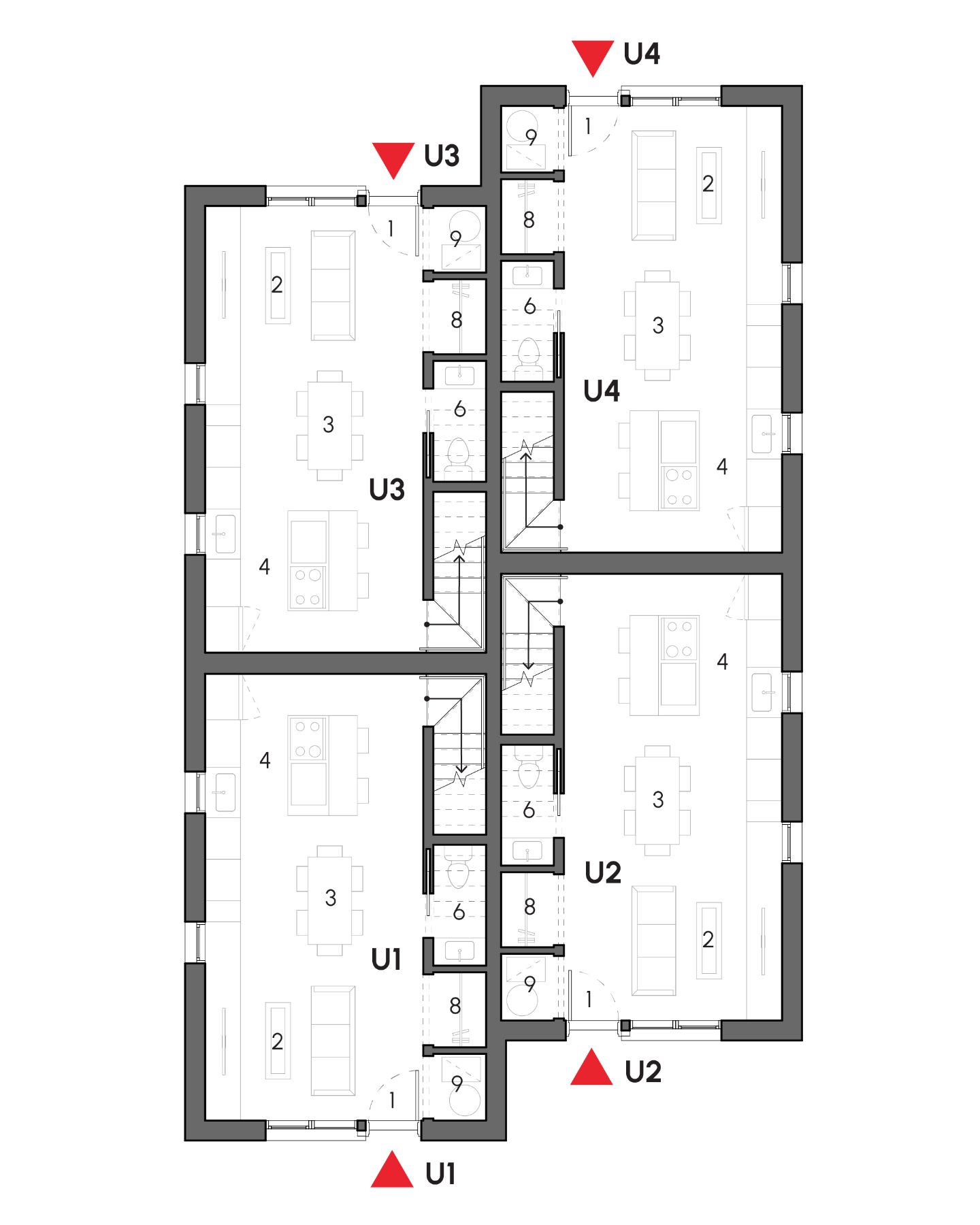

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. Office
