Accessory Dwelling Unit 01

BC

Gross Building Area: 50 sq. m. (540 sq. ft)

1 1

Single-storey Accessory Dwelling Unit, optional adaptable layout.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

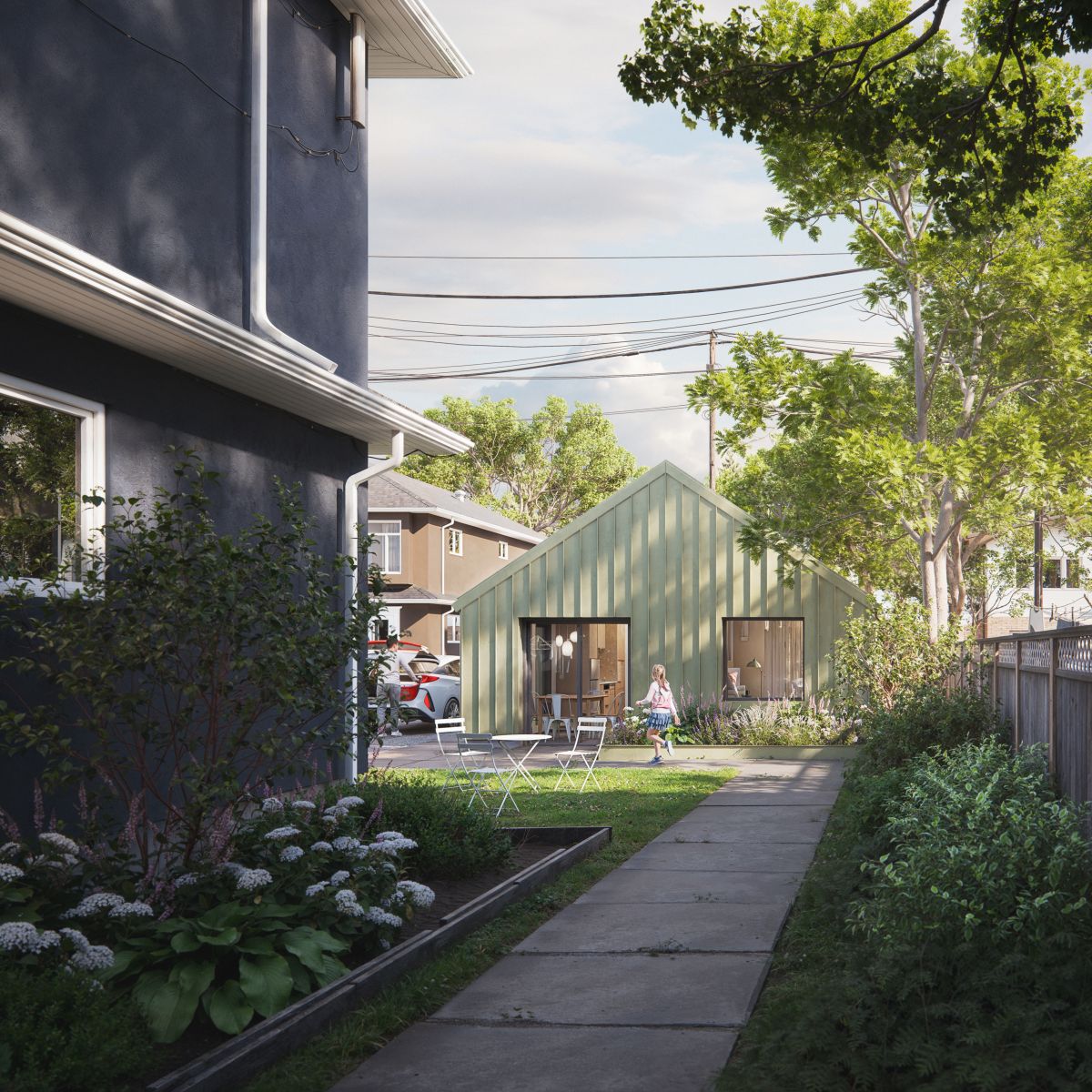

The 3D rendering shows a residential backyard during daytime. A concrete pathway runs from the foreground to the background, leading to a small, single-storey house painted in soft green with a gabled roof. This house has large glass doors and windows.

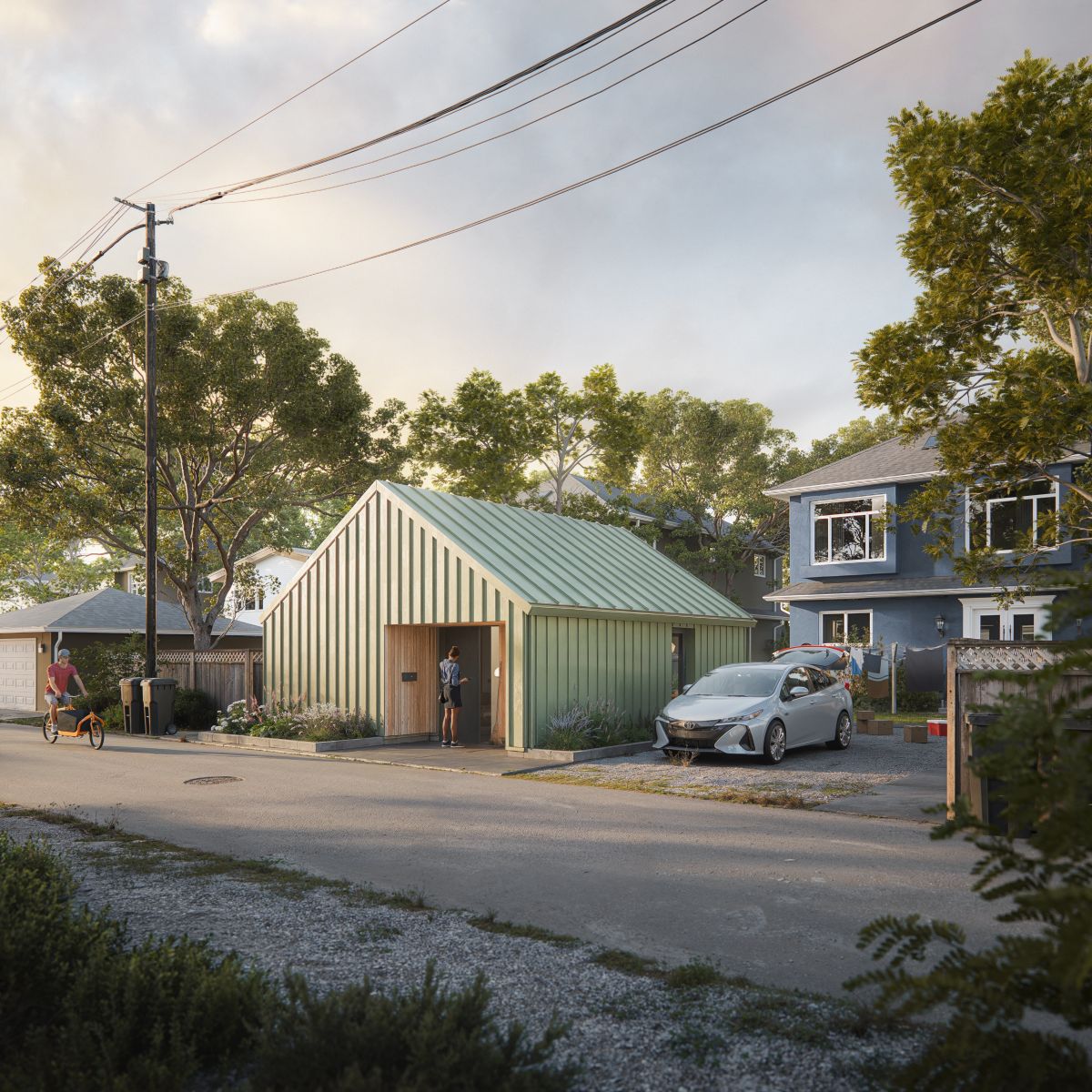

The 3D rendering shows a home with a gabled roof, painted in a soft green color with vertical metal siding. The entrance is framed by a wooden accent.

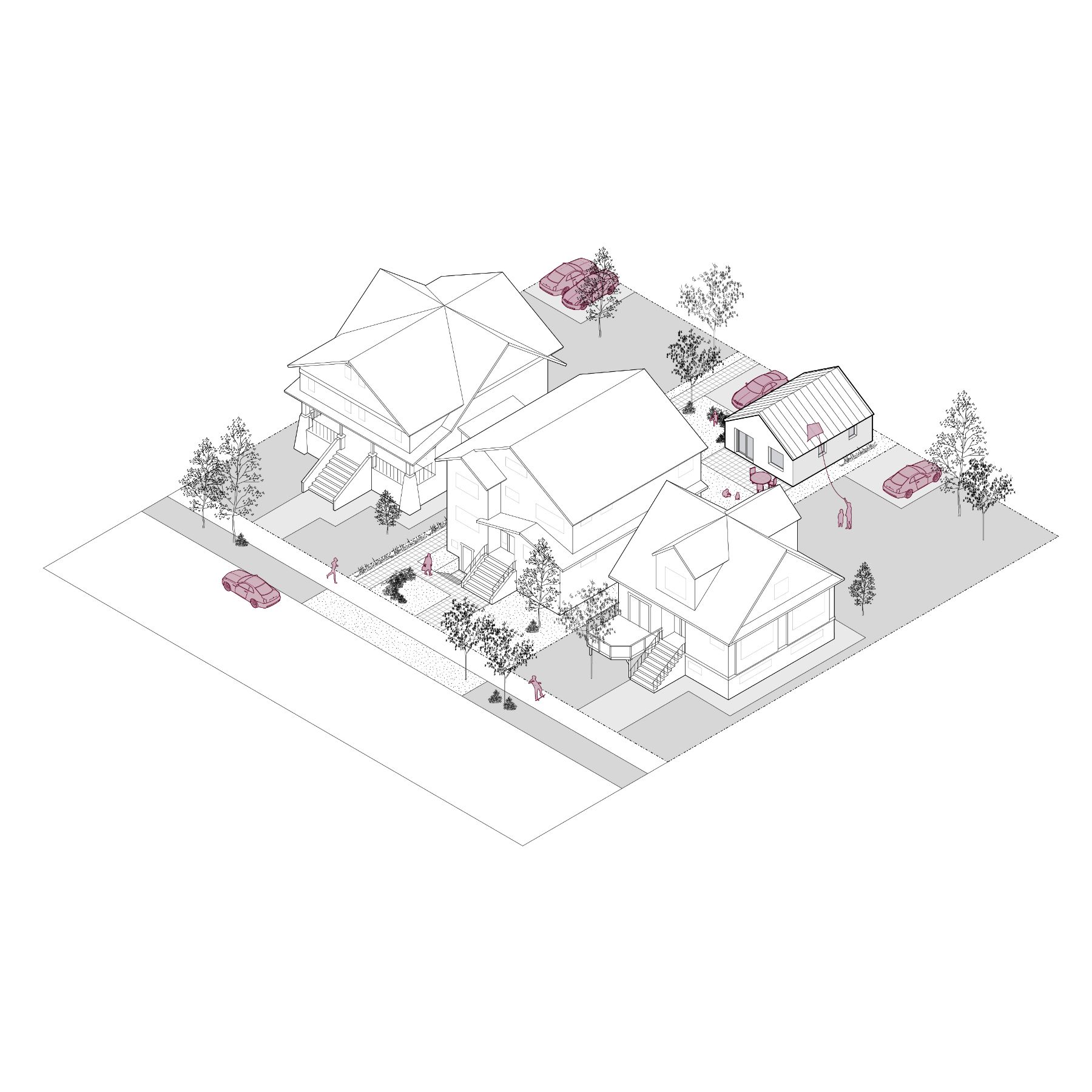

A 3D line rendering of the unit ADU 01, which is approximately 600 square feet. It shows the unit's integration into a typical neighbourhood, emphasizing its efficient use of space and single-storey layout.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
