Accessory Dwelling Unit 01

NB, NL, NS, PE

Gross Building Area: 59 sq. m. (638 sq. ft)

1 1

Single-storey Accessory Dwelling Unit, accessible-ready.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

Technical package (All Files)
All of the details to build the design.

Let us keep you up to date

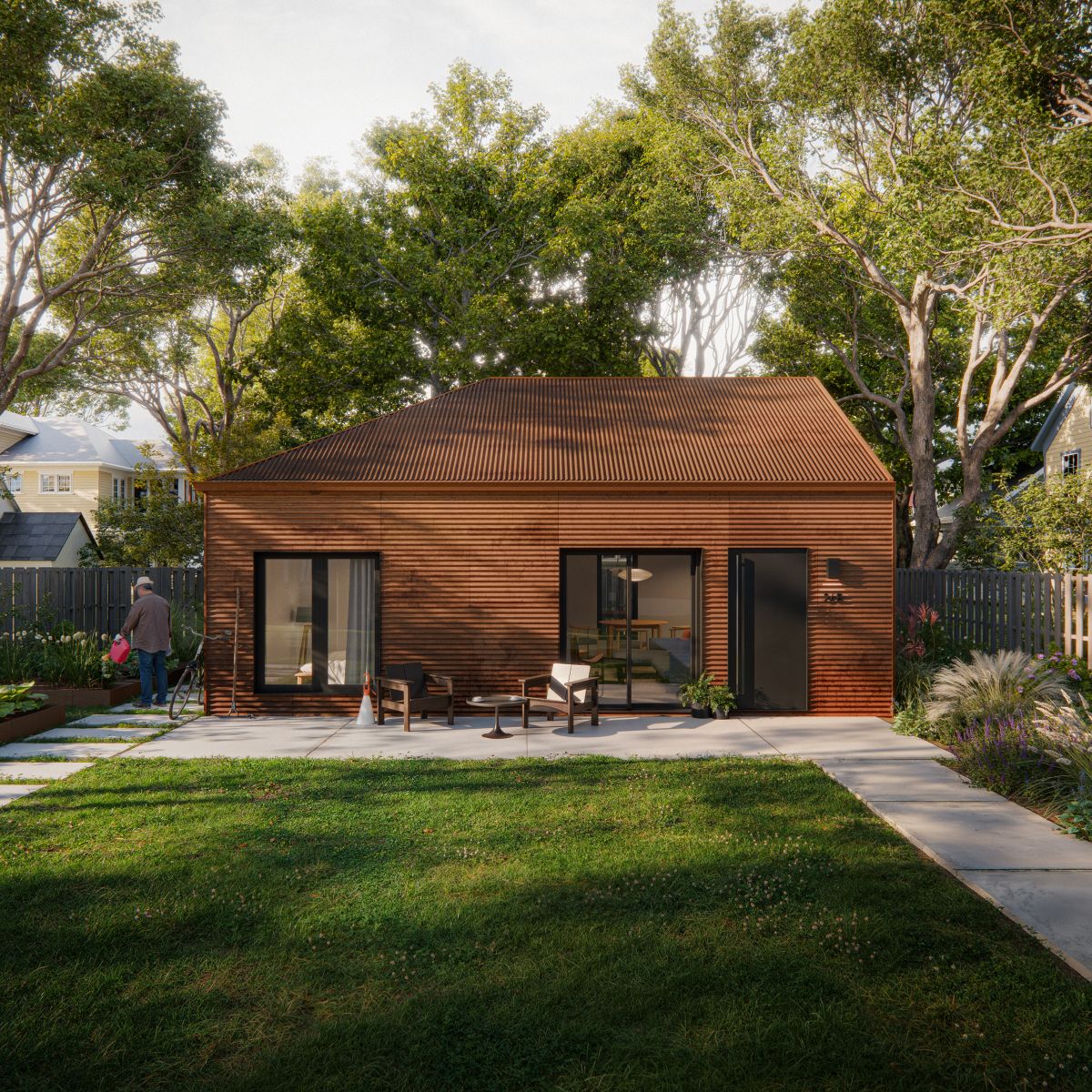

A 3D rendering of a backyard ADU with a warm wood clad exterior in a lush garden setting. The inviting patio features outdoor seating, while large windows and sliding doors which connect the indoor and outdoor spaces.

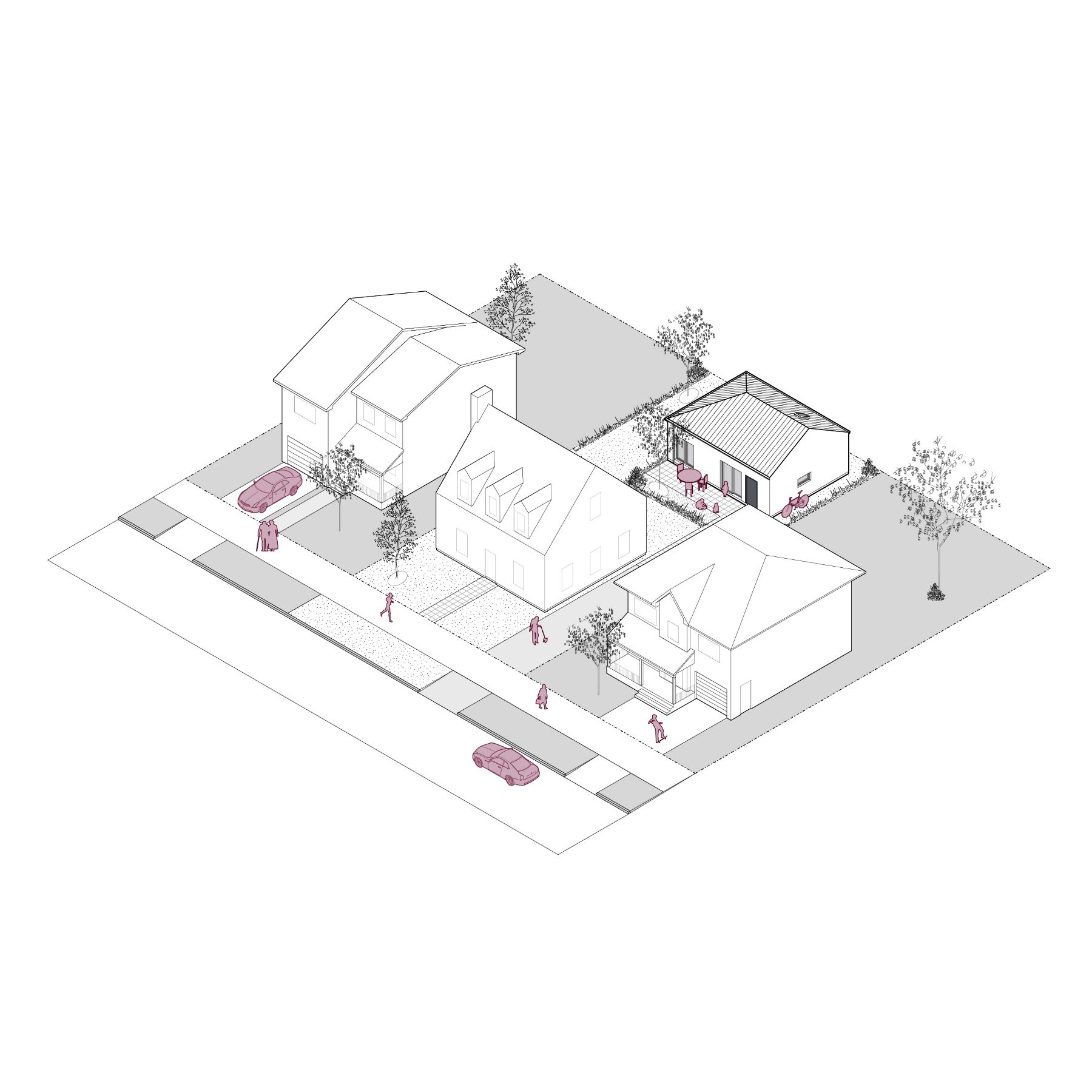

A 3D line rendering of the unit ADU 01, which is approximately 635 square feet. It shows the unit’s integration into a neighbourhood, emphasizing its efficient use of space and single-storey layout. The unit is surrounded by neighboring homes.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. S. o.
11. S. o.
