Fourplex 01

AB

Gross Building Area: 306 sq. m. (3293 sq. ft)

1–2 1 Per unit

4-unit home designed to fit in a variety of neighbourhood contexts, including narrower lots. Includes an accessible-ready unit.

This design includes 2 options for the third floor layout including alternate balcony access and rooflines.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

Technical package (All Files)
All of the details to build the design.

Let us keep you up to date

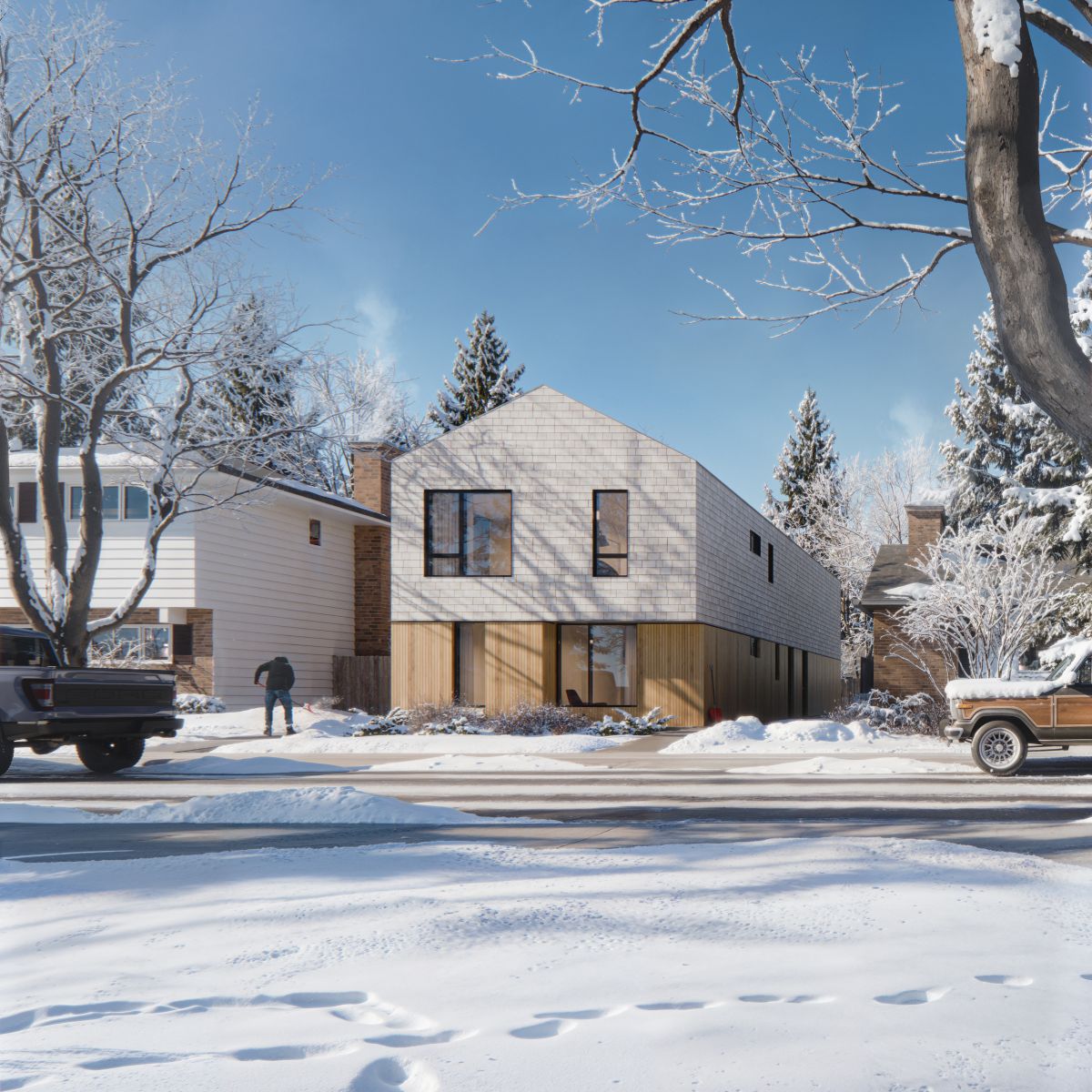

A 3D rendering of a rowhouse with shingles, wood finishes, and large windows. The ground is covered in snow, with trees and parked trucks in the background.

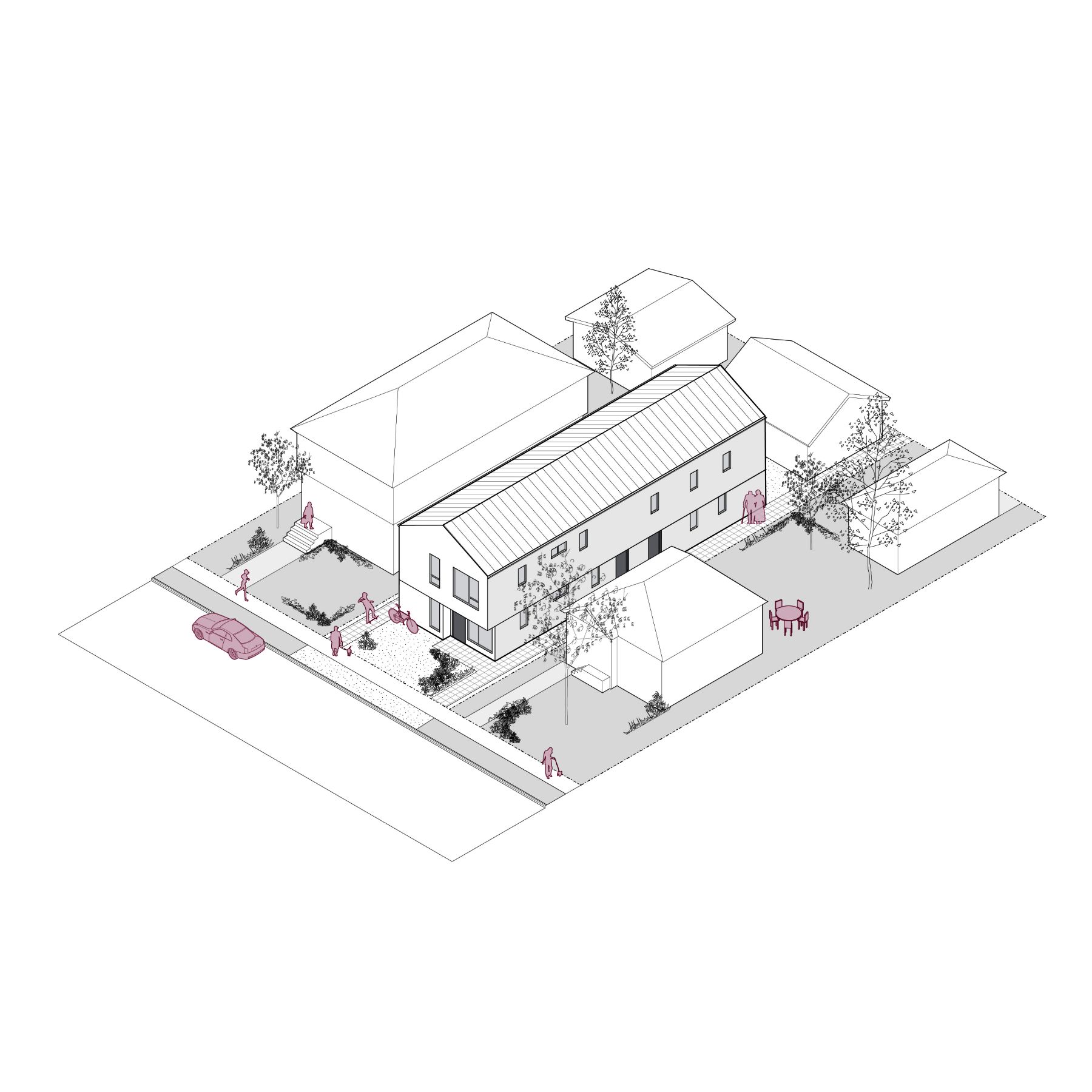

A 3D line rendering of Fourplex 01, totaling 1,658 square feet. The three-storey building is illustrated in a suburban setting with neighboring homes, trees, and walkways. Each of the four units has its own entrance and living space.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. N/A
10. N/A
